No playback in unity

Depthkit Depthkit Expansion Package for Unity
,
1

I am on Unity 6, using the Phase 10 expansion package. I have imported the packages and loaded the video, texture file, and the data file but I cannot get the video to play. I cannot even see the poster image in the scene after loading it. I noticed this on this package but the Phase 9 package was working correctly.

I am not sure if there is a different step I haven’t followed? Or is it possible to get the Phase 9 package for download as I can’t seem to find it anymore

2

@Telmo - Sorry to hear about this issue. Can you please confirm a couple of details:

  • Specific Unity 6 version
  • Render Pipeline (e.g. Built-in, URP, HRDP)
  • What type of Depthkit asset you are trying to play back (e.g. Core, Cinema, Studio)
  • Which Depthkit packages have been added to the project
  • The configuration of your Depthkit game object: Which components appear in the inspector, and how they are configured.
  • Any errors which appear in the console

Please provide the details above, and we will go from there.

3

-Unity 6(6000.0.23f1)
-URP
-Assets from Depthkit Studio
-depthkit.core, depthkit.core.visualeffectgraph, depthkit.studio, depthkit.studio.visualeffectgraph
-I have the Depthkit Clip + Studio Built-in Look prefab, and in it’s inspector there’s: Depthkit Clip,Depthkit Video Player (Unity), Video Player, Depthkit Studio Built-in Look, Depthkit Studio Mesh Source
-There are no errors in the console

4

@Telmo - The Built-In Look is not compatible with the scriptable render pipelines. To achieve a photo look in URP, import the Core ShaderGraph and Studio ShaderGraph packages, then import the ‘Depthkit Clip + Studio Shader Graph Look’ prefab and connect your assets.

A couple of things to note:

  • After connecting the assets to the appropriate fields, you’ll need to set the Surface Buffer Capacity to get the Depthkit Studio Shader Graph object to appear.
  • There is a known issue with the Studio VFX prefabs, but you can still create an object with the Depthkit Studio VFX look from scratch by adding the ‘Depthkit Clip’ and ‘Depthkit Studio VFX Graph Look’ components to an empty object.

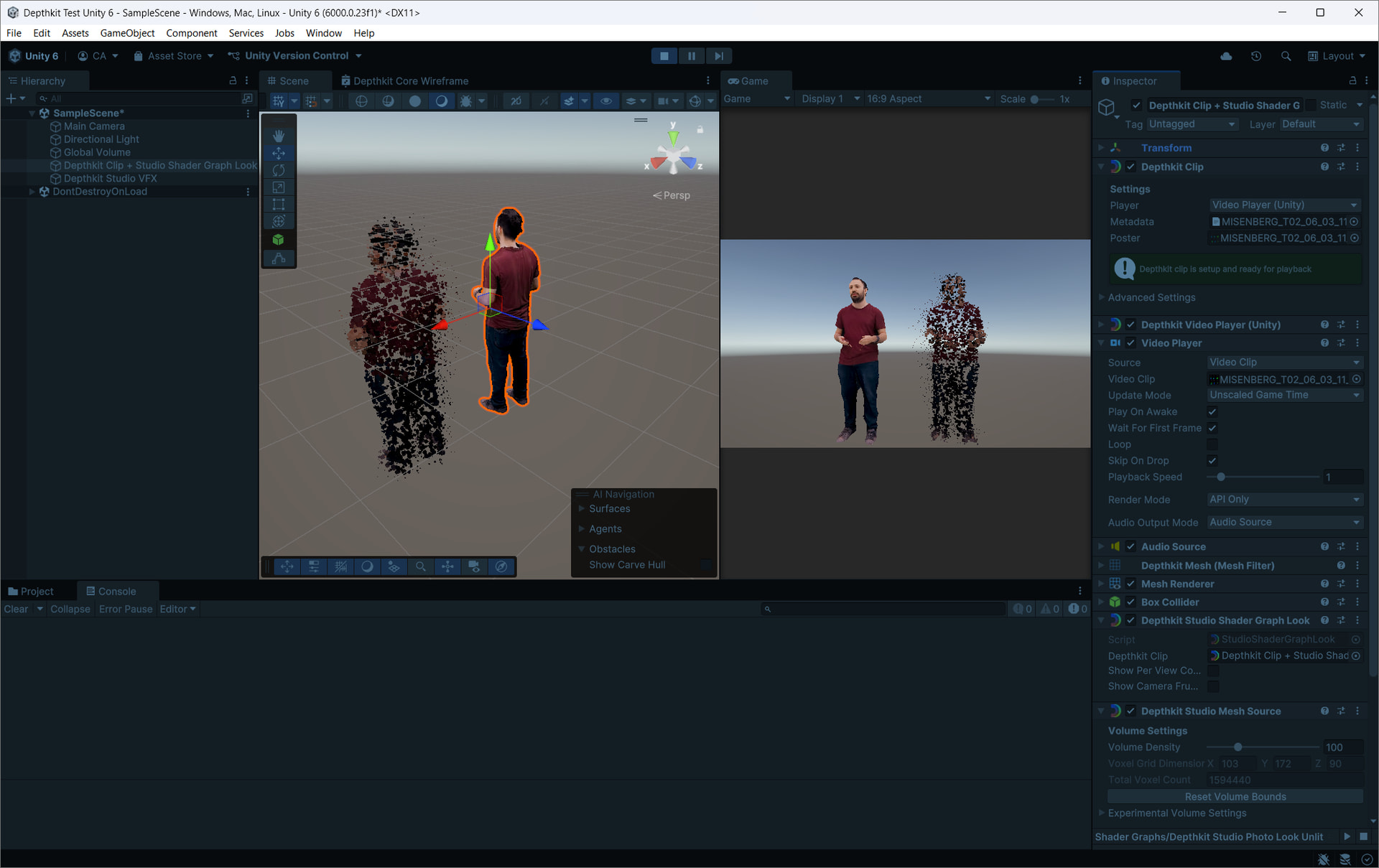

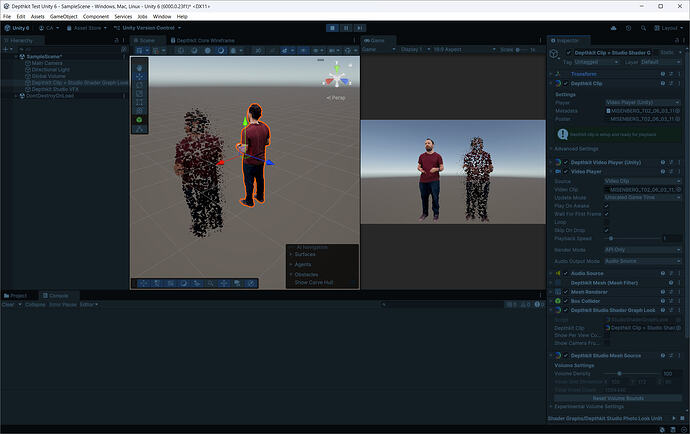

image1920×1209 291 KB

5

Thank you Cory, it’s working now.
